JESUS 396 - CHANGING TO A BIGGER CRANK


ASSEMBLY

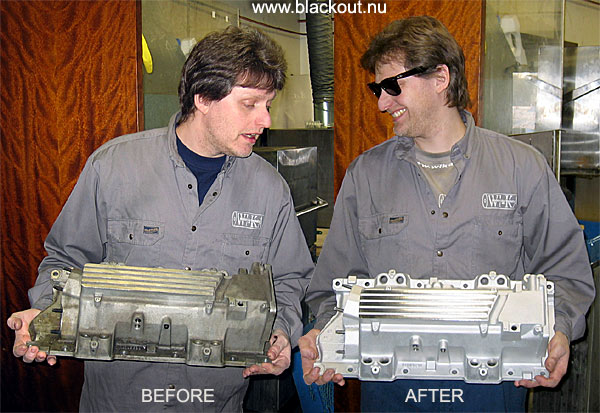

Thomas Ödlund at Wika Mekaniska Verkstad took care of the boring intake manifold and
made a Star of it with the help of glass blasting and polishing! Wonderful!

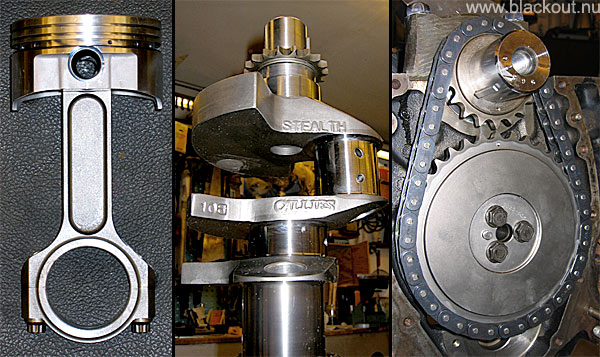

A beauty to just hold and feel in the hand, Oliver rod and JE piston with turbo-coated top. You need both
hands for the Callies Stealth crank. New timing set is a GM Extreme Duty LT4 #12370835. Autoshop
has done the necessary mods to the crank gear to make it fit on the Big Block diameter crank.

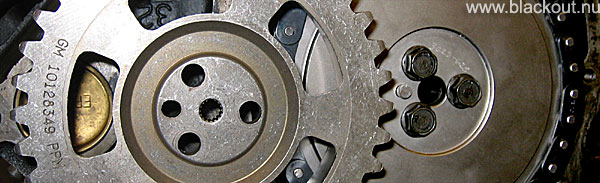

"Old" Cloyes LT1 roller set gear (left) has splines for the little pin that drives the Optispark which the
newer one doesn't have. But that doesn't matter any more.

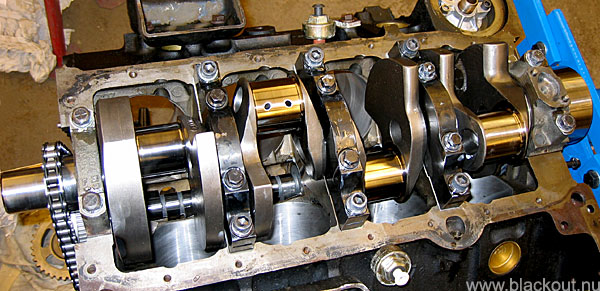

Welcome to a tough world crankie boy! It spins very easily in his new home.

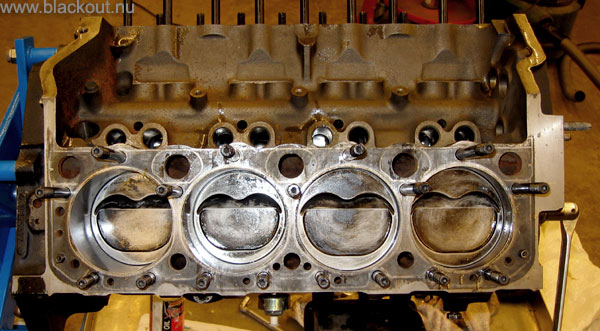

Shortblock ready.


When the heads and all the valves, springs and retainers are off there's a good time for Blackgammon.

Heads later...
